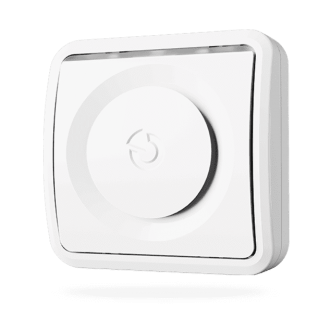

JA-110A II Jablotron 100+ Bus Indoor Siren with Battery Back-up
- Brand::Jablotron
- Product Code: JA-110A II
- Availability: In Stock
| Power supply | 12 V DC (9�15 V), from the BUS |
|---|---|
| Optional back up battery | BAT-3V2-CR2 (400 mAh) |
| Current consumption in standby mode | 5 mA (quiescent) |
| Current consumption for cable choice | 120 mA (maximal) |
| Type of warning device | type Z/12hr back-up |
| Siren | piezo-electric, 100 dB/m (�5 dB/m) |
| Dimensions | 80 x 80 x 35 mm |
| Weight (with battery) | 92 g |
| Classification | 1) |
| Environment | Indoor general |
| Operating temperature range | -10 �C to +40 �C |
| Average operating humidity | 75 % RH, without condensation |
| Complies with | EN 50581 |
| Certification body | Trezor Test s.r.o. (no. 3025) |
The JA-110A II is a louder indoor bus siren that can take an optional back-up battery. It signals alarms, entry and exit delays and PG activations.
Highlights
- 100 dB/m piezo siren
- Optional BAT-3V2-CR2 (400 mAh) back-up battery
- Programmable button and alarm verification
- Bus powered; 5 mA standby, 120 mA maximum
- 80 × 80 × 35 mm
Where it suits
For sites that want indoor warning to keep going if the bus is cut.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
Tags: JA-110A II, indoor siren, battery backup siren, Jablotron 100+, bus
