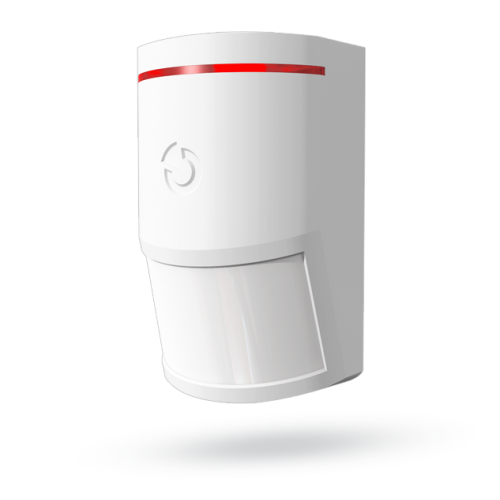

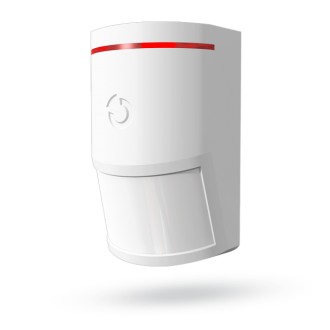

JA-110P Jablotron 100+ Bus PIR Motion Detector
- Brand::Jablotron
- Product Code: JA-110P
- Availability: In Stock
| Power | from the control panel bus, 12 V DC (8�15 V) |
|---|---|
| Quiescent current consumption | 5 mA |
| Maximal current consumption | 10 mA |
| Recommended installation height | 2.5 m above the floor |
| Detection angle / detection coverage | 110� / 12 m (with standard lens) |
| Dimensions | 60 x 98 x 52 mm |
| Weight | 75 g |
The JA-110P is a wired PIR detector that protects interiors by sensing infrared movement across a room. Interchangeable lenses let you shape the coverage for long corridors, a vertical curtain, or pet-tolerant detection.
Highlights
- 110° / 12 m coverage with the standard lens
- Optional lenses: JS-7904 corridor, JS-7910 pet, JS-7902 curtain
- False-alarm immunity adjustable at two levels
- SMART MEMORY indication (SMI): LED shows which detector triggered, reset from the keypad
- Bus powered; 5 mA quiescent, 10 mA maximum
Where it suits
A versatile room detector for homes, offices and shops.
Installation and set-up
Mount it about 2.5 m above the floor, connect it to the bus and enrol it in F-Link. It occupies one address.
