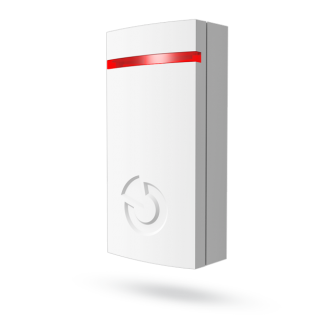

JA-111SH Jablotron 100+ Bus Shock and Tilt Detector
- Product Code: JA-111SH
- Availability: In Stock
| Power | from control panel bus 12 V (9�15 V) |
|---|---|
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 5 mA |
| Dimensions | 55 x 27 x 16 mm |
| Classification | grade 2 |
| according to | EN 50131-1, CLC/TS 50131-2-8 |
| Operational environment | EN 50131-1 II. Indoor general |
| Operating temperature range | -10 �C to +40 �C |
| Also complies with | EN 50130-4, EN 55022 |
The JA-111SH works in two modes. Shock mode picks up vibration on doors or windows from an attempted break-in. Tilt mode detects when a protected object is moved.
Highlights
- Shock (vibration) and tilt modes
- Bus powered; 5 mA
- Grade 2 (EN 50131-1, CLC/TS 50131-2-8)
- 55 × 27 × 16 mm
Where it suits
Suits windows, safes, gates and valuable items.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
