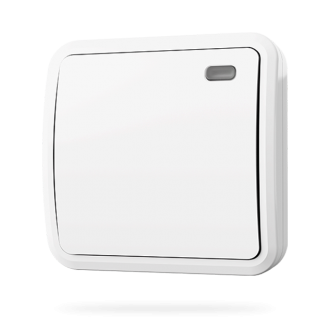

JA-112J Jablotron 100+ Bus Emergency and Control Wall Button
- Brand::Jablotron
- Product Code: JA-112J
- Availability: In Stock
| Power | from the control panel digital BUS 12 V (9 - 15V) |
|---|---|
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 5 mA |
| Dimensions, weight | 80 x 80 x 29 mm, 60g |
| Operational environment according to EN | II. Indoor general 50131-1 |
| Operation temperature range | -10 �C to + 40 �C |
| Complies with | EN 50130-4, EN 55022, EN 50581 |
The JA-112J is a wall-mounted button on the wired Jablotron 100+ bus. Depending on how it is programmed, it raises an emergency alarm or switches PG outputs.
Highlights
- Emergency alarm or PG output control
- Bus powered (9–15 V); 5 mA
- 80 × 80 × 29 mm, 60 g
- Indoor general environment, –10 °C to +40 °C
Where it suits
Suits reception desks, bedsides and service areas where a fixed panic or control button is needed.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
Tags: JA-112J, panic button, emergency button, Jablotron 100+, bus button, duress
