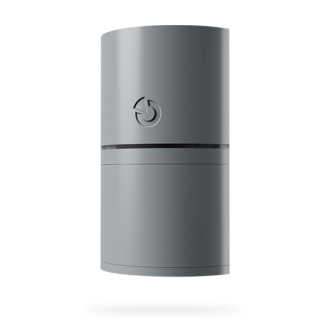

JA-112P-GR Jablotron 100+ Bus PIR Motion Detector – Grey
- Brand::Jablotron
- Product Code: JA-112P-GR
- Availability: In Stock
| Compatible with | F-Link 2.0.0 and higher |
|---|---|
| Power | from the control panel BUS 12 V (9 ... 15 V) |
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 16 mA (maximum) |
| Recommended installation height | 2.5 m above the floor |
| Detection angle / detection range | 90 �/12 m |
| Dimensions | 62 x 110 x 40 mm |
| Weight | 77 g |
| Classification | Grade 2/Environmental class II (According to EN 50131-1) |
| Operational environment | Indoor general |
| Operational temperature range | -10 �C to +40 �C |
| Average operational immunity | 75 % RH, non-condensing |
| Certification body | Trezor Test s.r.o. (no. 3025) |
| Complies with | 2+A1, EN 55032, EN 50581 |
The JA-112P-GR is a refined bus PIR detector in grey, built to the highest quality and design standards so it sits comfortably in premium interiors. It guarantees 90° / 12 m coverage and can also drive programmable PG outputs.
Highlights
- Guaranteed 90° / 12 m detection
- Impulse activation; can control PG outputs
- False-alarm immunity adjustable at two levels
- Standard resistance to white light
- Grade 2 / environmental class II; requires F-Link 2.0.0 or later
Where it suits
Suits living areas, boardrooms and showrooms where appearance matters.
Installation and set-up
Mount it about 2.5 m above the floor, connect it to the bus and enrol it in F-Link.
