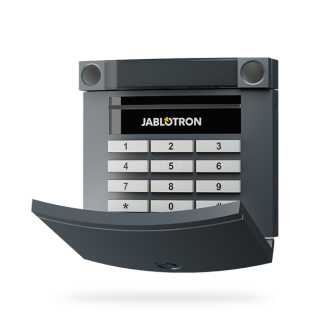

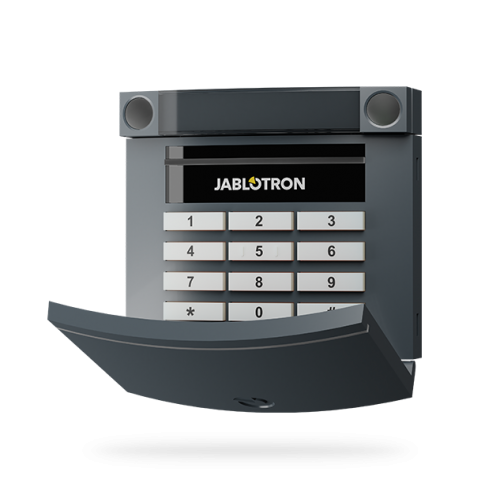

JA-113E-AN Jablotron 100+ Bus Access Module with Keypad and RFID – Anthracite
- Brand::Jablotron
- Product Code: JA-113E-AN
- Availability: In Stock
| Power | control panel bus (9 ... 15 V) |
|---|---|
| Current consumption in standby (quiescent) | 10 mA |
| Current consumption for choice of cable | 15 mA |
| Current for each segment | 0.5 mA |
| RFID frequency | 125 kHz |
| Operating temperature range | -10 to +40 � C |
| Environment | EN 50131-1. general indoor |
| Classification | grade 2 according to EN 50131-1, EN 50131-3 |
| Complies with | ETSI EN 300330, EN 50130-4, EN 55022, EN 60950-1 |
| Can be operated to | ERC REC 70-03 |
The JA-113E-AN combines a numeric keypad and a 125 kHz RFID reader in a anthracite housing. Users can enter a code or present a card or tag to operate the Jablotron 100+ system, and control segments give single-press access to the functions they use most.
Highlights
- Keypad plus 125 kHz RFID reader
- One control segment included; add up to 20 JA-192E segments
- Power-saving function to reduce bus load
- Communicates over and is powered by the bus; occupies one address
- Grade 2 to EN 50131-1 and EN 50131-3
Where it suits
Suits entrances, garages and staff doors where both code and card access are wanted.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
