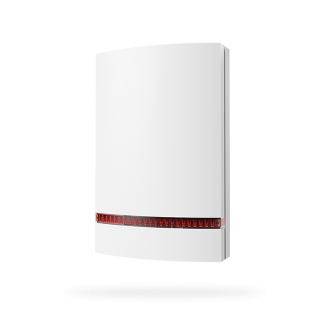

JA-115A Jablotron 100+ Bus External Siren
- Brand::Jablotron
- Product Code: JA-115A
- Availability: In Stock
| Power | from control panel BUS 12 V (9�15 V) |
|---|---|
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choice | 50 mA |
| NiCd pack 4.8 V/1800 mAh | lifetime approx. 3 years |
| Backup battery | Please note: battery is not included |
| - minimum loaded voltage | 4.0 V |
| - maximum voltage | 6.0 V |
| Piezoelectric siren | 110 dB/m (with fully charged battery) |
| Dimensions (with cover) | 200 x 300 x 70 mm |
| Classification | Security grade 2 |
| according to | EN 50131-1, EN 50131-4 |
| Environment class IV. | general outdoor -25 �C to +60 �C |
| Security grade | IP44 |
| Also complies with | EN 50130-4, EN 55022, EN 60950-1, EN 50581 |
The JA-115A outdoor siren signals alarms outside the building and provides extra acoustic indication. It is addressable and occupies one position.
Highlights
- 110 dB/m (fully charged battery)
- NiCd 4.8 V / 1800 mAh back-up battery (not included)
- Bus powered; 5 mA standby, 50 mA for cable choice
- 200 × 300 × 70 mm with cover
Where it suits
Strong outdoor warning for homes and businesses.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
Tags: JA-115A, outdoor siren, external siren, Jablotron 100+, bus
