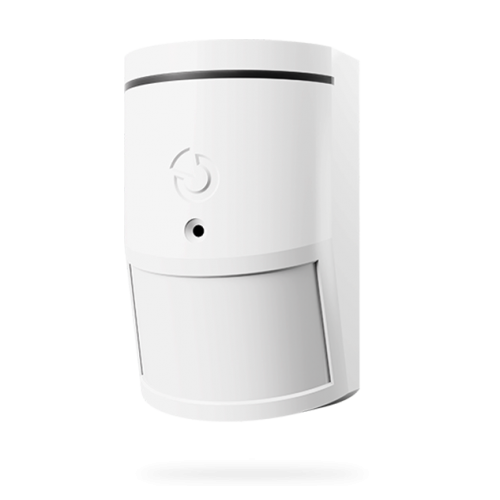

JA-120PB Jablotron 100+ Bus PIR Motion and Glass-Break Detector
- Brand::Jablotron
- Product Code: JA-120PB
- Availability: In Stock
| Power | from the control panel bus 12 V (9 ... 15 V) |
|---|---|
| Current consumption in standby mode | 5 mA |
| Current consumption for cable choise | 10 mA |
| Recommended installation height | 2.5 m above the floor |
| Detection angle/coverage PIR | 110 degrees/12 m (standard lens) |
| Detection distance GBS | 9 m (window glass size min. 0.6 x 0.6 m) |
| Dimensions | 60 x 95 x 55 mm |
| Classification | Grade II |
| according to | EN 50131-1, EN 50131-2-2, CLC/TS 50131-2-7-1 |
| Operational environment | EN 50131-1 II. Indoor general |
| Operational temperature range | -10 to +40 �C |
| Also complies with | EN 50130-4, EN 55022 |
The JA-120PB fits two sensors into one housing: a PIR motion detector and an acoustic glass-break detector. One device covers intruder movement and broken windows, saving a second installation point.
Highlights
- PIR: 110° / 12 m with the standard lens
- Glass break: up to 9 m (glass at least 0.6 × 0.6 m)
- Enrols to two consecutive positions
- Bus powered; 5 mA standby, 10 mA maximum
- Grade II
Where it suits
Ideal for living rooms and shopfronts with large glazed areas.
Installation and set-up
Mount it about 2.5 m above the floor, connect it to the bus and enrol both functions in F-Link.
