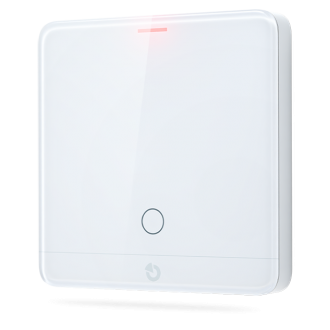

JB-112TH Jablotron 100+ Bus Temperature, Humidity and CO2 Sensor with Thermostat Function
- Brand::Jablotron
- Product Code: JB-112TH
- Availability: In Stock
| Temperature measuring range with external sensor | -40 to +125 �C (� 0.2 �C) |
| Operating temperature range | -10 to +40 �C |
| Humidity measurement range | 0 to 100 % RH (�1.8) |
| CO? measurement range | 400�5,000 ppm |
| CO? measurement accuracy | 400�1,000 ppm: �50.0 ppm �2.5 % m.v. 1,001�2,000 ppm: �50.0 ppm �3.0 %w.b. 2,001�5,000 ppm: �40.0 ppm �5.0 %w.b. |
| CO? measurement resolution | 1 ppm |
| *Temperature controller class | I. (according to Regulation (EU) No. 813/2013) |
| *Contribution of regulators to seasonal efficiency | ? S = 1 % (according to Regulation (EU) No 813/2013) *for both parameters in configuration with control unit |
| Power | from the JA-100+ control panel bus 12 V DC (8�15 V) from the Futura unit bus 24 V DC (18�30 V) |
| Quiescent current consumption | 5.2 mA |
| Maximum current consumption | 22 mA |
| IP resistance | IP 31 |
| Dimensions | 82 x 82 x 22 mm |
| Weight | 82.9 g |
| Operating humidity | 75 % RH (non-condensation) |
| Environment | Indoor general |
| Also complies with | EN 50130-4, EN 55032, EN IEC 63000 |
| Recommended screws | 2x � 3.5 mm (half-round head) |

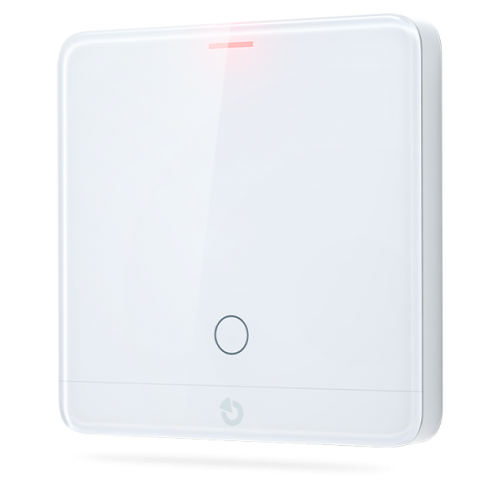

The JB-112TH is a temperature, humidity and CO2 sensor with thermostat function for the Jablotron 100+ bus, finished in white. It has no display and offers the same control functions as its thermostat counterpart, for places where a local interface is not needed.
Highlights
- Bus powered (JA-103K, JA-107K)
- Temperature range with external sensor –40 to +125 °C
- Humidity 0–100 %
- CO2 measurement 400–5,000 ppm
- 82 × 82 mm; backplate for surface mounting sold separately
Where it suits
For homes, offices, guesthouses and technical rooms.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
