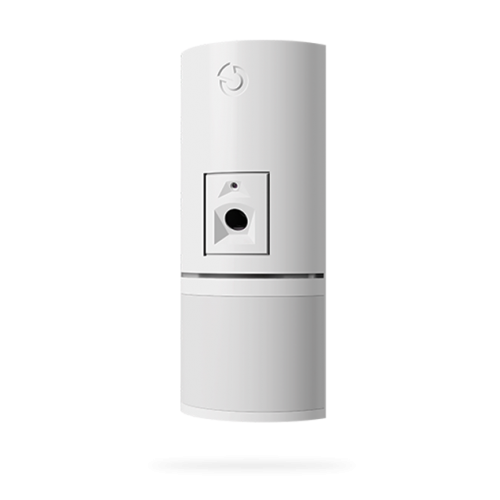

JA-122PC Jablotron 100+ Bus PIR Detector with 90° Photo-verification Camera – White
- Brand::Jablotron
- Product Code: JA-122PC
- Availability: In Stock
| Power | 12 V BUS (8... 15 V) |
|---|---|
| - nominal for the backup supply calculation | 5 mA |
| - maximum for cable choice | 250 mA (high flash intensity) |
| Recommended installation height | 2,5 m above floor level |
| PIR detection angle/detection coverage | 90�/12 m |
| Horizontal camera capture angle | 90� |
| Range of the flash | max. 3 meters |
| Camera resolution | LQ 320x240; HQ 640x480 pixels |
| Photo size | LQ/HQ 5-20kB/5-64kB |
| Typical (LQ) photo transmission time to the control | up to 20 sec. (10 sec.) panel |
| Ideal (HQ) photo transmission time to the control | up to 130 sec. (60 sec.) panel |
| Typical photo transfer time to server | 15 s/GPRS; 2 s/LAN |
| Dimensions, weight | 150 x 65 x 44 mm, 125 g |
| Classification | Security grade 2/Environmental class II (EN 50131-1) |
| Operational temperature range | -10 �C to +40 �C |
The JA-122PC (white) detects movement and captures colour photos to confirm what triggered the alarm. Its wide 90° camera matches the PIR coverage, and images are available through MyJABLOTRON or an ARC service.
Highlights
- PIR 90° / 12 m; camera 90° horizontal
- Resolution LQ 320 × 240 / HQ 640 × 480
- Flash range up to 3 m
- Bus powered (8–15 V); 5 mA nominal, 250 mA at high flash
- Photo verification requires MyJABLOTRON registration or an ARC service
Where it suits
Ideal where visual alarm verification reduces false call-outs.
Installation and set-up
Mount it about 2.5 m above the floor, size the cable for peak current and enrol it in F-Link.
