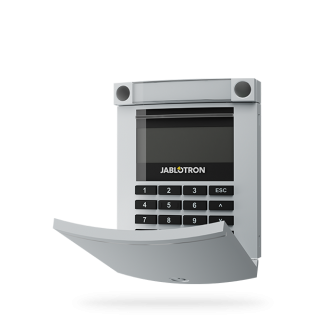

JA-114E-GR Jablotron 100+ Bus Access Module with LCD, Keypad and RFID – Grey
- Brand::Jablotron
- Product Code: JA-114E-GR
- Availability: In Stock
| Power | from control panel digital bus (9�15 V) |
|---|---|
| Current consumption in standby mode | 15 mA |
| Current consumption for cable selection | 100 mA |
| Each additional control segment | 0.5 mA |
| RFID frequency | 125 kHz |
| Operating temperature range | -10 to +40 �C |
| Operational environment according to EN | 50131-1 II. Indoor general |
| Classification | Grade 2 |
| according to | ETSI EN 300330, EN 50131-1, EN 50131-3, |
| Also complies with | EN 50130-4, EN 55022, EN 60950-1 |
| Can be operated according to | ERC REC 70-03 |
The JA-114E-GR is the fully featured access module in the JA-11xE family: an LCD display, a keypad and a 125 kHz RFID reader in a grey finish. Its menu makes it easy to control and manage sections, zones and PG outputs and to review reports on the wired Jablotron 100+ system.
Highlights
- LCD display, control keypad and 125 kHz RFID reader
- One control segment included; expandable with up to 20 JA-192E segments
- Power-saving function
- Powered from and communicating over the bus; occupies one address
Where it suits
The go-to access point for homes and businesses that want on-screen status and full menu control at the door.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
