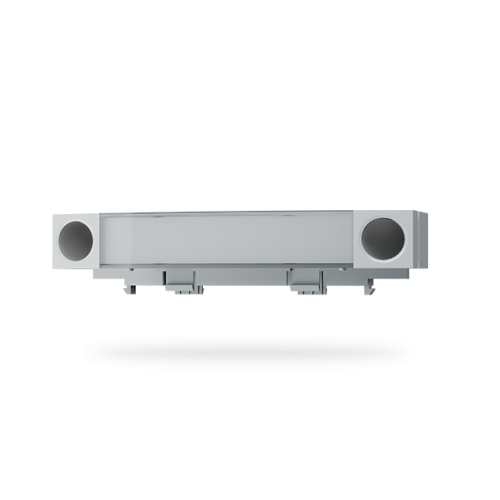

JA-192E-GR Control Segment for Jablotron 100+ Access Modules – Grey
- Brand::Jablotron
- Product Code: JA-192E-GR
- Availability: In Stock
| Power | via the access module (9 � 14 V) |
| Average power consumption of a control segment | 10 mA |
| Dimensions | 102 x 15 x 33 mm |
| Weight | 20 g |
| Classification | grade 2 according to EN 50131-1, EN 50131-3 |
| Environment | general indoor |
| Operating temperature range | -10 to +40 �C |
| Complies with | EN 50130-4, EN 55022 |
The JA-192E-GR is a grey control segment that clips onto JA-11xE access modules, adding a dedicated button and status light for one function of the Jablotron 100+ system.
Highlights
- Controls sections (partial arming, disarming)
- PG output control: ON, ON/OFF or OFF
- Emergency calls such as panic or medical alerts
- Displays system status
- Powered via the access module; 10 mA average
Where it suits
Use it to build a customised control panel beside the door for homes and offices.
Installation and set-up
Fit the segment to a compatible access module (up to 20 per module) and assign its function in F-Link.
