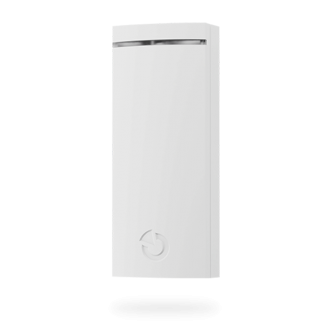

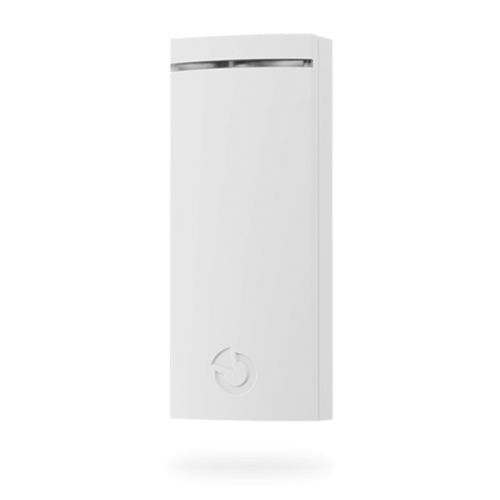

JA-112M Jablotron 100+ Bus Two-Input Module
- Brand::Jablotron
- Product Code: JA-112M
- Availability: In Stock
| Power | From control panel BUS 12 V (9 � 15 V) |
|---|---|
| Current consumption in standby mode | 7 mA |
| Current consumption for cable choice (maximum) | 12 mA |
| Maximum length of cable to the magnetic contact | 100 m |
| Dimensions | 110 x 44 x 26 mm |
| Weight | 51 g |
| Classification | Grade 2/II. indoor general (According to EN 50131-1) |
| Operational environment | Indoor general |
| Operational temperature range | -10 �C to +40 �C |
| Average operational humidity | 75 % RH, non-condensing |
| Certification body | Trezor Test s.r.o. (no. 3025) |
| Also complies with | EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50130-4 ed. 2+A1, EN 55032, EN 50581 |

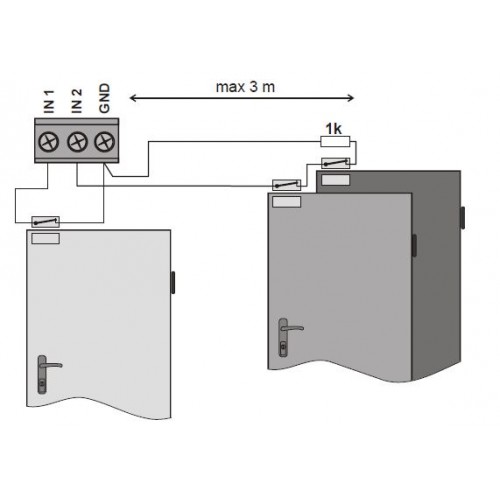

The JA-112M connects wired magnetic contacts to the bus through two independent inputs. Each can be NC, NO, single balanced or double balanced.
Highlights
- 2 inputs; occupies two positions
- Minimum alarm time 0.5, 1, 2 or 5 s
- SMART MEMORY LED indication
- Contact cable up to 100 m
- Grade 2
Where it suits
Retrofit existing wired contacts to a Jablotron 100+ system.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
