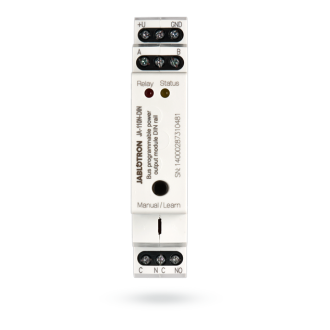

JA-110N-DIN Jablotron 100+ Bus DIN-Rail Power Relay Module PG
- Brand::Jablotron
- Product Code: JA-110N-DIN
- Availability: In Stock
| Power | from control panel BUS 12 V (9 � 15 V) |
|---|---|
| Current consumption in standby mode (relay off/on) | 5 mA/45 mA |
| Current consumption for cable selection | 45 mA |
| Relay contact capacity (galvanically and securely separated from the BUS) | Class protection II |
| - Maximum switched voltage | 250 V AC/24 V DC |
| - Resistive load (cos?=1) | max. 16 A |
| - Inductive (capacitive) load (cos?=0,4) | max. 8 A |
| - Halogen lighting | max. 1000 W |
| - Direct current DC | 384 W |
| - Minimum DC switched output | 0.5 W |
| Connected wires diameter | max. 2 x 1.5 mm2 max. 1 x 2.5 mm2 |
| Dimensions | 18 x 90 x 64 mm |
| Operational environment | Indoor general |
| Operational temperature range | -10 �C to + 40 �C |
| Protection degree | IP-20 |
| Complies with | EN 50130-4, EN 55022, EN 60950-1 |
| DIN rail | EN60715 |
The JA-110N-DIN is a DIN-rail relay module for the Jablotron 100+ bus with a 16 A / 250 V AC contact. It can switch lighting, fans or appliances, and its button allows manual switching or override (which can be disabled).
Highlights
- NO / NC relay, max. 16 A resistive, 8 A inductive, 250 V AC / 24 V DC
- Modes: ON/OFF, impulse with timer up to 24 h, copy, delayed or extended copy, change
- Galvanically separated contact, protection class II
- Addressable; occupies one position
Where it suits
Neat switchboard installation for home and building automation.
Installation and set-up
Mount it on a DIN rail, connect it to the bus and set its mode in F-Link. Mains wiring must be completed by a licensed electrician.
