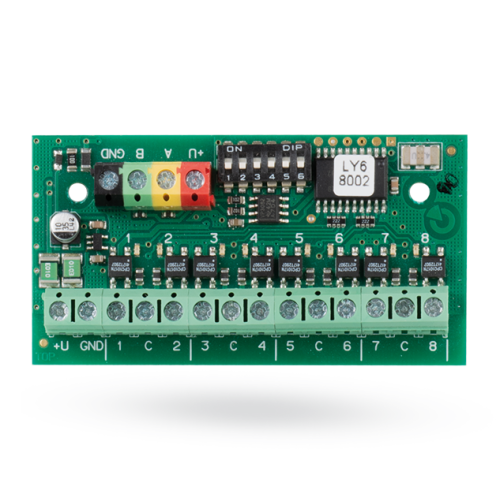

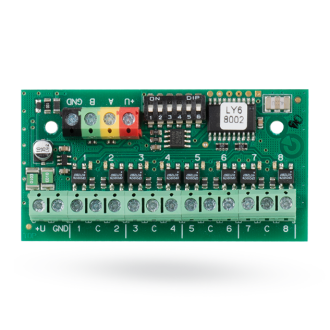

JB-118N Jablotron 100+ Bus Signal PG Output Module – 8 Outputs
- Brand::Jablotron
- Product Code: JB-118N
- Availability: In Stock
| Power | from control panel BUS 12 V DC (9 � 15 V) |
| Current consumption - outputs off/on | 5 mA/10 mA |
| Current consumption for cable selection | 10 mA |
| Maximum current from +U output (electronic fuse) | < 100 mA (all connected devices must be included in current calculations) |
| Maximum switched current/voltage for each output | 100 mA/38 V |
| Dimensions | 77 x 40 x 15 mm |
| Weight | 26 g |
| Classification | Security grade 2/Environmental class II (according to EN 50131-1) Only when installed into the JA-194PL or JA-195PL mounting box together with the JA-111H TRB module! |
| Operational environment | indoor general |
| Operational temperature range | -10 �C to +40 �C |
| Average operational humidity | 75 % RH, non-condensing |
| Certification body | Trezor Test s.r.o. (no. 3025) |
| Complies with | EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50130-4 ed. 2+A1, EN 55032, EN 50581 |
The JB-118N gives eight signal outputs on the Jablotron 100+ bus, each switching up to 100 mA at 38 V.
Highlights
- 8 outputs, 100 mA / 38 V each
- Bus powered; 5/10 mA
- Grade 2 when installed as specified
- 77 × 40 × 15 mm
Where it suits
For indicators and interface signalling.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
Tags: JB-118N, 8 output module, signal outputs, Jablotron 100+, bus
