JA-111I Universal RGB LED Indicator 12 V
- Brand::Jablotron
- Product Code: JA-111I
- Availability: In Stock
| Power | 12 V (9 � 15 V) |
|---|---|
| Standby power consumption (LED on/off) | 5 mA/0 mA |
| Current consumption for cable selection | 5 mA |
| Dimensions | 62 x 36 x 27 mm |
| Operational environment according to | EN 50131-1 II. Indoor general |
| Operating temperature range | -10 �C to 40 �C |

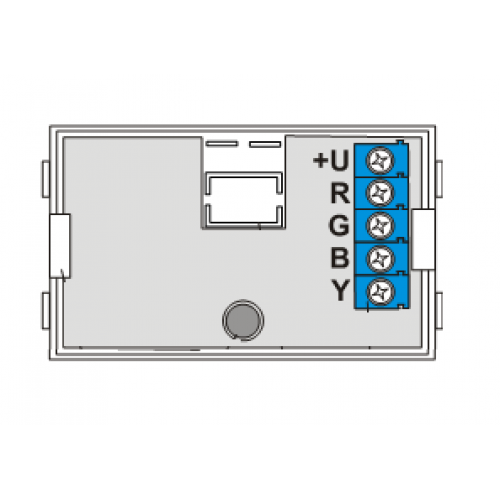

The JA-111I shows section or output activity with multi-coloured LEDs (red, green, blue and yellow). The colour is set by how the terminals are wired, and it can show two colours for an output module, for example red/green.
Highlights
- Multi-colour LED indication
- 12 V (9–15 V)
- 62 × 36 × 27 mm
- Indoor general
Where it suits
Status indication at doors, plant rooms or reception.
Installation and set-up
Wire it to the relevant output as described in the manual.
Tags: JA-111I, LED indicator, status light, Jablotron 100+
