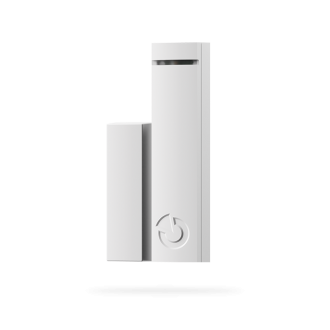

JA-113M Jablotron 100+ Bus Magnetic Detector with External Magnetic Field Recognition – White
- Brand::Jablotron
- Product Code: JA-113M
- Availability: In Stock
| Power | from control panel digital bus 12 V DC (9�15 V) |
|---|---|
| Low power supply voltage fault | <8,8 V |
| Quiescent current consumption | 2.5 mA |
| Maximal current consumption | 12.5 mA |
| Dimensions transmitter part | 20 x 86 x 20 mm |
| Dimensions magnet part | 16 x 55 x 15 mm |
| Weight | 18 g |
| Classification | security grade 3 / environmental class II (EN 50131-1) |
| Operational environment | Indoor general |
| Operating temperature range | -10 �C to +40 �C |
| Averate operational humidity | 75 % RH, non-condensation |
| Certification body | Trezor Test s.r.o. (no. 3025), Kiwa Nederland b. v. |
| In compliance with | T 031, EN 50131-1, -2-6, EN 50130-4, EN 55032, EN IEC 63000 |
| Recommended screw | 2x � 3.5 x 40 mm (flat head) |
The JA-113M (white) detects doors and windows opening and recognises tampering with external magnetic fields. Its reaction can be set to pulse or state, and it is rated Security Grade 3.
Highlights
- Recognises external magnetic fields
- Selectable pulse or state reaction
- Security grade 3 / environmental class II
- Bus powered; 2.5 mA quiescent, 12.5 mA maximum
- Detector 20 × 86 × 20 mm; magnet 16 × 55 × 15 mm
Where it suits
Suits higher-security doors and windows.
Installation and set-up
Install by a trained technician with a valid certificate. Connect it to the bus and enrol it in F-Link.
