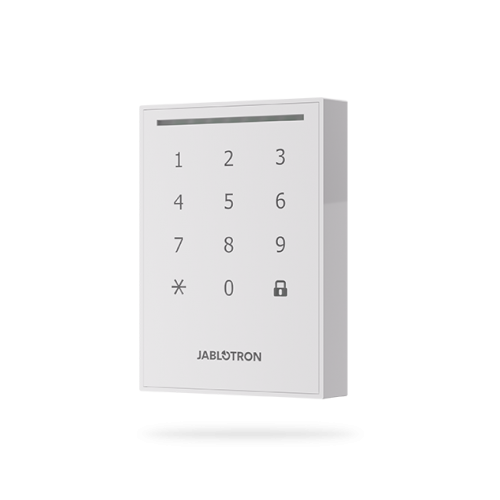

JA-121E-WH Jablotron 100+ Bus Outdoor Keypad with RFID and NFC Reader – White
- Brand::Jablotron
- Product Code: JA-121E-WH
- Availability: In Stock
| Power supply | from control panel |
|---|---|
| Backup (idle) power consumption | 35 mA |
| Maximum power consumption | 105 mA |
| RFID frequency | 125 kHz |
| MIFARE frequency | 13.56 MHz |
| Environment | outdoor general |
| Ingress Protection Code | IP 55 |
| Operational temperature range | -25 �C to +70 �C |
| Dimensions | 96 x 67 x 19 mm |
| Weight | 170 g |
The JA-121E-WH adds a keypad to the dual-technology reader design, in white. Users can enter a code or present a 125 kHz RFID or 13.56 MHz MIFARE credential, and the keypad can trigger a PG output for an electric lock or control the alarm system. The tempered glass face is hard to scratch.
Highlights
- Keypad plus 125 kHz RFID and 13.56 MHz MIFARE reading
- IP55, outdoor general, –25 °C to +70 °C
- 35 mA idle, 105 mA maximum
- 96 × 67 × 19 mm, 170 g
Where it suits
Ideal for outdoor entry points where both PIN and card access are required.
Installation and set-up
Connect it to the wired Jablotron 100+ bus, enrol it and set its behaviour in F-Link. We recommend installation by a Jablotron-trained installer; the installation manual is available in the Downloads tab.
